Dual Band 1200Mbps 5g Sim Router PCBA 9V-36V Vehicle Wide Voltage Router Wifi 5g
Product Description
WS1209-5G is a 5G/4G+WiFi dual band 1200M industrial grade vehicle router, which supports three gigabit Ethernet communications, WIFI LAN (802.11 b/g/n/a/ac) communications and WAN 4G/5G wireless communication functions. The device is loaded with WAN communications, WIFI LAN transmission security certification, 5G/4G/3G system watchdog and other functions, realizing seamless connection between WLAN and wireless WAN, automatic redial when disconnected, and providing users with high-speed Safe and reliable mobile broadband service;
The equipment adopts metal shell, special vehicle anti-interference design, good anti-interference performance, and safe anti-theft frame. The on-board special power supply design is adopted to support the on-board 12V and 36V power supply systems, which can effectively prevent the damage of the on-board power supply fluctuation to the equipment. It is applied to the WIFI wireless Internet access of various mobile vehicles, such as bus WIFI, long-distance bus WIFI, bullet train WIFI and taxi WIFI. At the same time, the equipment is also widely used in the WIFI coverage of scenic spots and other public places.
Specification
| WS1209-5G Hardware Specifications | |
| Hardware Specifications |
MT7621A Dual Core 880MHZ DDR3 memory 256MB SPI FLASH 16MB |
| 4G 5G Modem | 4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20 |
| Interface |
1*10/100M/1000M WAN port with automatic MDI/MDIX 2*10/100M/1000M LAN ports, auto MDI/MDIX or 2PCS LAN can be selected. 1*USB 2.0 port 1*PCI-E 1*M.2 1*SIM card 1*SD card 1*4PIN Power interface |
| LED | Power/SYS/USB/2.4G/5.8G/4G5G/USB |
| Button | 1 Reset button |
| Power adapter | 9V-36V Vehicle wide voltage |
| Maximum power consumption | < 24W |
| Color scheme | Black |

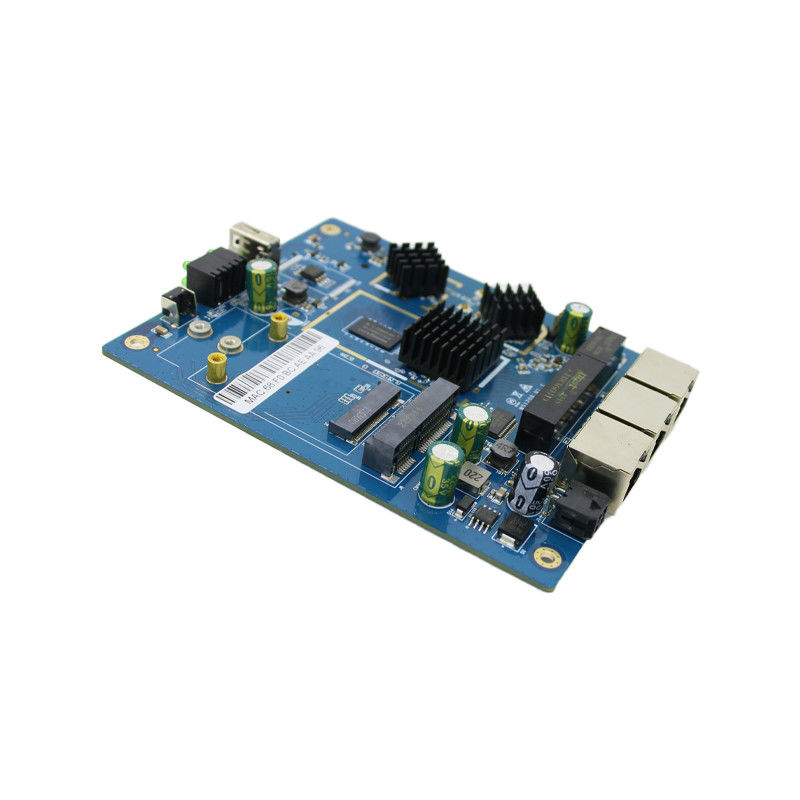

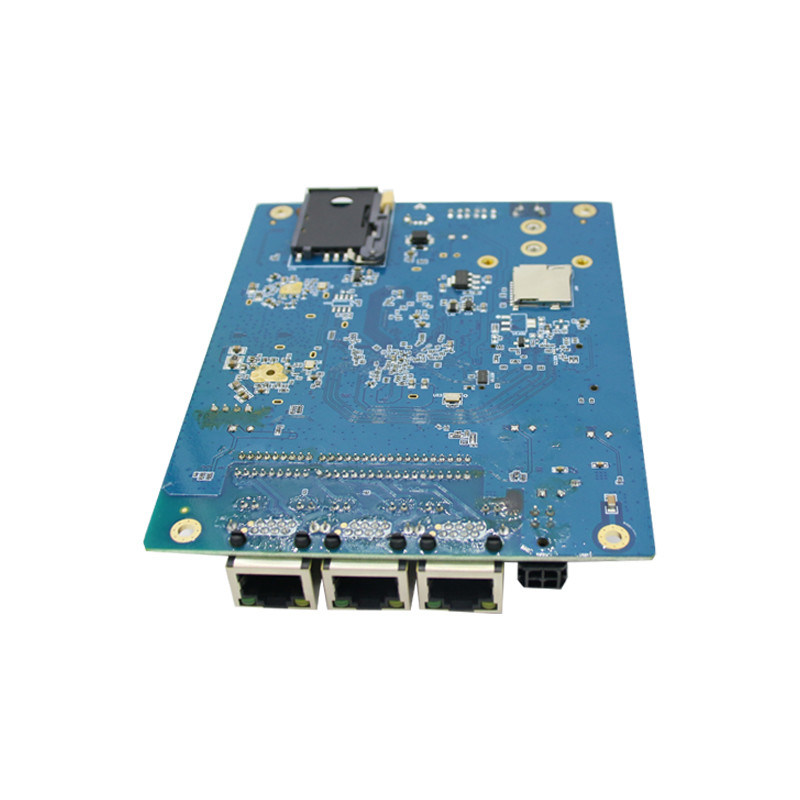

Details Images
